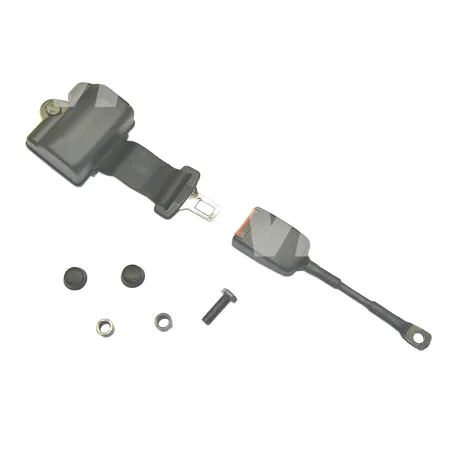

SICHERHEITSGÜRTE - 3924338500

Complete/part: Komplett
Sort: 2-Punkt-Gurt
Type: 2-Punkt Typ 1
Type of retractor: Retraktor mit Notverriegelung
Minimum angle ELR mounting A1 (°): 23
Maximum angle ELR mounting A2 (°): 30
Housing of the retractor: Geschlossen
Mounting of the retractor: Retraktortyp A
Length of the retractor L1 (mm): 85
Width of the retractor W1 (mm): 106.5
Height of the retractor H1 (mm): 60.5
Diameter mounting hole of the first retractor D2 (mm): 11
Length of the belt L2 (fully rolled out) (mm): 1000
Width of the belt W2 (mm): 47
Colour: Schwarz
Type of tongue: Gurtzunge Typ C
Outside length of the tongue L3 (mm): 37.5
Outside width of the tongue W3 (mm): 21.5
Thickness of the tongue T1 (mm): 3.1
Inside length of the tongue L4 (mm): 20
Inside width of the tongue W4 (mm): 11.5
Type of buckle: Druck-Entriegelung (Push-Release)
Release system of the buckle: Entriegelung oben
Mounting of the Buckle: Schnalle Typ C1
Length of the buckle L5 (mm): 215
Diameter of the mounting hole of the buckle D7 (mm): 11.5
Hardware present: JA
Support present: NEIN
Bush present: JA
Number of bushings: 2
Outer diameter of bush 1 D8 (mm): 18
Inner diameter of bush 1 D9 (mm): 12.5
Length of bush 1 L7 (mm): 10
Outer diameter of bush 2 D10 (mm): 18
Inner diameter of bush 2 D11 (mm): 12.5
Length of bush 2 L8 (mm): 12
Airbag present: NEIN
Seat belt buckle tensioner present: NEIN
E-approved: JA
ECE R16: NEIN
SAE J386: JA
SAE J2292: NEIN
FMVSS 209: NEIN
FMVSS 302: JA
ISO 6683: NEIN
ISO 3776: NEIN
DIR 77/541: NEIN
AS/NZS 2596: NEIN
JIS D 46604 II: NEIN
