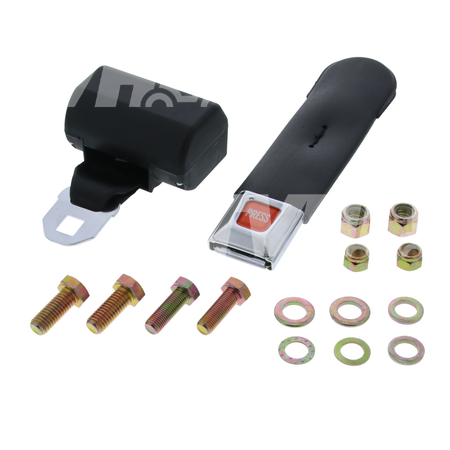

SICHERHEITSGÜRTE - 580062078

Complete/part: Komplett
Sort: 2-Punkt-Gurt
Type: 2-Punkt Typ 1
Type of retractor: Automatischer Retraktor mit Verriegelung
Housing of the retractor: Geschlossen
Mounting of the retractor: Retraktortyp A
Length of the retractor L1 (mm): 62
Width of the retractor W1 (mm): 950
Height of the retractor H1 (mm): 540
Diameter mounting hole of the first retractor D2 (mm): 14.2
Length of the belt L2 (fully rolled out) (mm): 1280
Width of the belt W2 (mm): 47
Colour: Schwarz
Type of tongue: Gurtzunge Typ K
Outside length of the tongue L3 (mm): 34
Outside width of the tongue W3 (mm): 42
Thickness of the tongue T1 (mm): 2.5
Inside length of the tongue L4 (mm): 14.2
Inside width of the tongue W4 (mm): 14.4
Type of buckle: Druck-Entriegelung (Push-Release)
Release system of the buckle: Entriegelung an der Seite
Mounting of the Buckle: Schnalle Typ B2
Length of the buckle L5 (mm): 205
Diameter of the mounting hole of the buckle D7 (mm): 13
Hardware present: JA
Support present: NEIN
Bush present: NEIN
Airbag present: NEIN
Seat belt buckle tensioner present: NEIN
E-approved: NEIN
ECE R16: NEIN
SAE J386: JA
SAE J2292: NEIN
FMVSS 209: JA
FMVSS 302: JA
ISO 6683: NEIN
ISO 3776: NEIN
DIR 77/541: NEIN
AS/NZS 2596: NEIN
JIS D 46604 II: NEIN
